Winner Winner Winner

Winner

Going inclusive

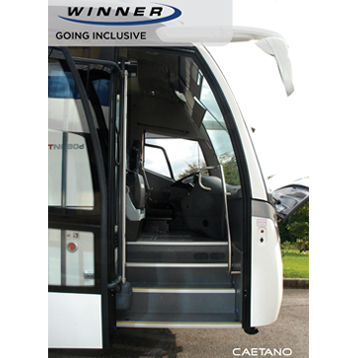

Winner was developed for tourism, intercity and school transport service. This coach stands out for its interior comfort, design, robustness and quality of materials. The lift platform on the front entrance steps (a CAETANO exclusive), the inclusive design for all passengers and the amphitheater effect completed by the ramp-up platform make this vehicle totally differentiating in its segment.

In addition, its generous dimensions add additional comfort for passengers. Winner is a reference of quality between passenger vehicles, winning on the road and showing the best that CaetanoBus does in transports Industry.

01

Comfort

Capacity/length ratio in which the different specifications of the vehicle do not compromise passenger comfort. Highly ergonomically designed seats, with the possibility of customization and triple function AC, allowing a comfortable journey for passengers.
02

Safety

Seat with three-point belts for passengers. Pneumatic driver's seat, adjustable to various positions and three-point belt. High standard of safety and comfort, ideal for long-distance travel.
03

Design

Fluid lines, an aerodynamic front and a rounded rear contribute to the excellence of the design and improve vehicle performance. Rear and front grill: associate the need for good airflow with the identification of CAETANO bodies.
04

Inclusive

Wide entrance through the front door, the largest in the market. Provision for application of lift platform by the front door, a CAETANO exclusive.

Equipment

Equipment Winner Equipment Winner Equipment Winner

STANDARD EQUIPMENT

UNDER VOLVO PLATFORM
  • Provision for all modern audio and video systems, such as large LCDs: one at the centre 19” from the entrance and another on the side 10:9, in the middle of the vehicle (optional)
  • Exterior, electro-pneumatic luggage compartments, with large vertical assisted opening covers: remote or manual controlled for greater ease of accessibility to the wide luggage area
  • With anti-entrapment system
  • Tinted side windows
  • Fixed 19” monitor applied to the front lining
  • Fixed 15” monitor applied over the central door 10:9
  • Interior mirror to control the central door
  • Reversing sensors
  • Triple operation AC (hot and cold) with interior convectors
  • Cooler integrated in the dashboard
  UNDER MERCEDES-BENZ PLATFORM
  • Wide plug-type single leaf outward sliding front entrance door
  • Remote control for opening/closing the doors and the luggage compartment doors
  • Rear service door equipped with anti-squeeze system (sensitive system)
  • Electro-pneumatic operated and vertical opening luggage access flaps with switch for opening and closing the doors available in the dashboard
  • Luggage Compartment flaps equipped with anti-squeeze system (sensitive system)
  • Driver’s electrical window
  • Electric sun blind for windscreen divided in 2 parts, with position switch (up and down)
  • Frontbox with air conditioning function
  • Driver seat ISRI NTS2
  • Foldable guide’s seat
  • Pleated window curtain
  • LED lighting on the luggage racks
  • School service lights (front and rear)
  • LED projector lighting over rear/stepwell
  • Radio system with AM/FM/CD/DVD/MP3/Bluetooth
  • 23’ video screen on the front
  • Rear view camera on the rear service exit
  • Rear view external camera for reversing, with light sensor for clear picture at dark driving conditions - infra red
  • Multiplex system connected to the fire sensor on the engine compartment

Specification

Specification Winner Specification Winner Specification Winner
Winner 13.1m Volvo
Bus body CAETANO
Length 13.100 mm
Width 2.550 mm
Height 3.700 mm
Wheelbase 6.570 mm
Seated with WC 53 seats + driver + tour guide
Seated without WC 55 seats + driver + tour guide
Luggage compartment volume (approximately)  With WC + Centre Door = 8.5 m³
Available under platform Volvo - B11R Model
Motorisation EURO 6
Power 460 cv
Manufacturer reserves the right to change product specifications. Other versions on request. Provision for hydraulic lift platform mounted on the first step of the front door and possibility of fixing two wheelchairs at the beginning of each row (only available under Volvo platform).
Winner 13.1m Volvo
Bus body CAETANO
Length 12.500 mm
Width 2.550 mm
Height 3.700 mm
Wheelbase 5.908 mm
Seats capacity 55 seats + driver + tour guide
Luggage compartment volume  9.5 m³
Available under platform MERCEDES-BENZ OC 500 RF 1939/43 EURO 6
Motorization EURO 6
Power 394 hp , 290 kW
Fuel Tank Capacity 410 L
Manufacturer reserves the right to change product specifications. Other versions on request. Provision for hydraulic lift platform mounted on the first step of the front door and possibility of fixing two wheelchairs at the beginning of each row (only available under Volvo platform).
